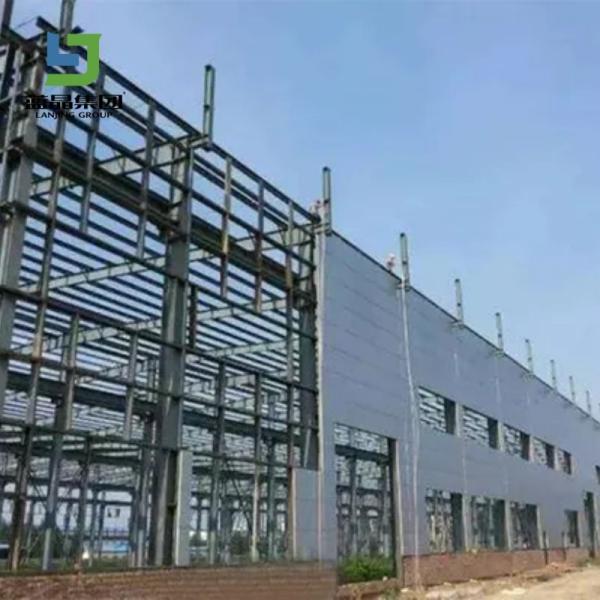

Graphic Design Steel Structure Workshop Light Weight Portal Frame
Structure
Steel Structure Characteristic
1. Good Sealing Performance:
The welded structure can be completely sealed. Therefore it support
to be made into products with good air tightness and good water
tightness, like the high-pressure container, the large oil sump and
pressure pipes.
2. Good Corrosion Resistance:
The general steel structure should be derusted, galvanized or
painted, and should be regularly maintained. For offshore platform
structures in seawater, special measures such as "zinc block anode
protection" are required to prevent corrosion.
3. Low carbon, Energy saving, Green and environmental, Material
recycled:
The demolition of steel structures hardly generates construction
waste, and the steel can be recycled.
Our Advantages
Product Parameters
The components of the steel structure have small section, light
weight, easy to transport and installation, suitable for large
span, high height, heavy bearing structure.
Suitable for withstand impact and dynamic load, with good seismic
performance.The internal structure of steel is uniform with high
reliability.
Lightweight Steel Structures: Used for small to medium-sized
buildings such as warehouses, factories, hangar, and commercial
buildings. They are cost-effective, lightweight, and quick to
assemble.
Heavy Steel Structures: Suitable for large-scale buildings like
industrial factories, bridges, airports, and stations, these
structures have high load-bearing capacities.
Multi-story & High-rise Steel Structures: These are used in office
buildings, residential complexes, and mixed-use developments. They
offer seismic resistance and fast construction timelines.
| Item | Material | Description and surface process |
|
Main steel frame | Column and Beam | Q235 or Q345 | H-section steel with two coats of mid-gray paint |
| Purlin | Q235 or Q345 | Galvanizd C or Z type steel |
Connecting
Pieces | Tie tube | Q235 | Circular Tube with two coats of mid-gray paint |
| Knee-Bracing | Q235 | L50*4 Galvanizd angle steel |
| Strutting piece | Q235 | φ32*2.5 Galvanizd Circular Tube |
| Column Bracing | Q235 | Circular Tube with two coats of mid-gray paint |
| Horizontal Bracing | Q235 | Circular Tube with two coats of mid-gray paint |
| Casing | Q235 | φ32*2.5 Galvanized Circular Tube |
Door and Window | Item | Description |
| Door | Roller shutter door or Sliding door |
| Window | PVC Window or aluminum alloy window |
Other parts | Ventilating device | Fan, Ventilation window |
| Bolt | Foundation bolt ,High strengthen bolt, Normal bolts |
| Skylight | Yx-840 Glass Fiber Reinforced Plastics |
| Out/Inner ridge tile | 0.50mm Color sheet |
| Crane beam | Q235 or Q345 H section steel with two coats of mid-gray paint |
Certifications
LJ Group Projects
FAQ
Q1: Is your company a factory or trading company?
A: We are manufacturer with foreign trade department, so you can
get competitive price as well as professional service. And you are
always welcomed to visit our factory at any time.
Q2: What are your main products?
A: We provide steel structure warehouse, workshop, plants,chicken
house, prefabricated house, container type house, garage, aircraft
hangar, sandwich panels and other construction materials. According
to the requirements of different projects and clients, we will
supply different designs and steel products.Customized design is available.
Q3: What's the quality assurance you provide and how do you make
quality control?
A: Quality-first is our core value. LJ steel structure quality
assurance team and quality control team have developed a rigorous
quality inspection system based on ISO9001. Testing Laboratory
guarantees qualified raw materials and high- standard product.
Q4: Do you provide installation instructions and on-site installation
services?
A:Every project will provide the installation instructions, and if
you need, we also would like to send our engineer to the local
construction site for helping the installation work.
Q5: What should I provide to get a complete quotation?
A: Please provide information as follows:
| 1.Project location | 5.Length (sidewall,m) | 9.Window material, style,size |
| 2.Snow load | 6.Width (end wall, m) | 10.Door material, style,size |
| 3.Wind load | 7.Wall Height (eave, m) | 11.raining condition |
| 4.Seismic magnitude | 8.Middle column allowed or not | 12.Crane needed or not |
| 13.other information if necessary |
