Professional Design Steel Structure Hangar High Strength Steel ISO
Certified Quality
Steel Structure Characteristics
1. Exceptional Strength and Durable Stability:
Steel, with its high - grade composition, has remarkable strength capabilities. It can endure substantial loads,
whether from heavy equipment in industrial settings or the powerful
forces during extreme weather.
This results in buildings that offer immediate safety and maintain
their integrity over extended periods, remaining steadfast against
various environmental factors.
2. Swift Construction for Optimized Efficiency:
Thanks to advanced prefabrication techniques, steel components are
fabricated with precision in factories.
These pre - made parts are then efficiently transported to the
construction site. This approach cuts down on construction
activities, eliminating labor - intensive procedures.
As a consequence, projects can be completed much faster and reducing construction costs significantly.
3. Environmentally - Friendly and Resource - Efficient:
Steel is completely recyclable, which means that when a building
reaches the end of its useful life, its steel elements can be
recycled and reused without any degradation in quality.
Moreover, the production and installation of steel structures
require less energy compared to materials like concrete.
Our Advantages
 | Strict Sourcing for Superior Steel
Our commitment to excellence begins at the raw material procurement
stage. We collaborate with recognized and trusted suppliers. Rigorous selection criteria are applied. Every batch of steel
procured is accompanied by detailed quality certifications and
third - party inspection reports, guaranteeing that only the finest
materials enter our factory. |
Technologically - Advanced Design Process for Optimal Results
At our factory, we've established a technologically - advanced
design process. Our design team is proficient in a suite of cutting
- edge design software, from 3D modeling programs to structural analysis tools. This enables us to simulate various load conditions and
environmental factors during the design phase. By leveraging these
advanced technologies, we can optimize the design for maximum
strength, cost - efficiency, and aesthetic appeal. |
|
 | Precise Machinery for Top Product Quality
Our steel structure factory houses a comprehensive range of
production equipment. We have high - precision laser cutting machines that can achieve high level accuracy in cutting steel sheets, and automated welding robots with advanced seam - tracking technology. These advanced tools ensure that each steel component is fabricated
with utmost precision, resulting in products that exhibit superior
strength and a flawless appearance. |
Product Parameters

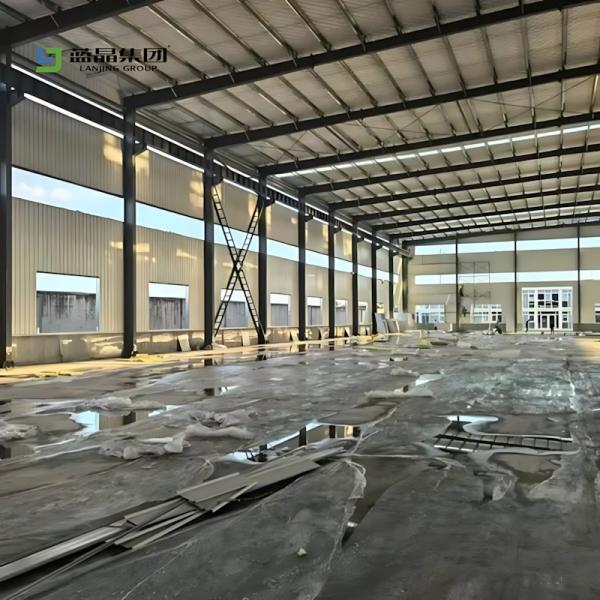

The Steel Structure Workshop Warehouse is ingeniously designed with a robust main steel frame comprising
H beams, C purline, and Z purline components.
Featuring a roof and walls constructed from an assortment of
panels, wallboard, this steel building offers unparalleled
benefits: expansive spans, exceptional strength, lightweight
design, cost-effectiveness, superior temperature control, energy
efficiency, and an aesthetically pleasing appearance.
Installation is swift and straightforward, ensuring excellent
insulation, durability, spatial efficiency, remarkable seismic
performance, flexible layouts, and recyclability.
| Main Structure | H-section steel | Q345 steel H beam, box column available |
| Welding | Automatic Submerged Arc Welding |
| Rust removing | Shot blasting |
| Surface processing | twice primer and twice finish Alkyd paint or hot dip galvanized |
| High strength bolt | Grade 10.9 |
| Substructure | Angle brace | L50*4, steel Q235, process and painting |
| Cross bracing | Dia.20 round bar, steel Q235 process and pre-galvanized |
| Tie bar | Dia 89*3 round pipe, steel Q235 process and painting or
pre-galvanized |
| Batter brace | Dia. 12 round bar, steel Q235 process and pre-galvanized |
| Ordinary bolt | Galvanized bolt |
| Roof | Purlin | C channel or Z channel, steel Q235, galvanized |
| Roof panel | (50mm, 75mm, 100mm, 150mm) Sandwich panel , corrugated galvanized
iron sheet |
| Transparent skylight | 1.2mm FRP |
| Accessories | Sealant, self-tapping screw |
| Edge cover | Made of color steel sheet |
| Gutter | Made of steel sheet with thickness 0.8mm, or PVC |
| Rainspout | PVC pipe |
| Wall | Purlin | C channel or Z channel, steel Q235, galvanized |
| Wall panel | (50mm, 75mm, 100mm, 150mm) Sandwich panel , corrugated galvanized
iron sheet |
| Accessories | Sealant, self-tapping screw |
| Edge cover | Made of color steel sheet |
| Ventilator | Unpowered axial-flow ventilator or monitor roof |
| Door & Window | Electric rolling door/sliding door, PVC/ Aluminum alloy window |
| Crane | Ranging from 5 tons to 20 tons |
| customized service and personalized design are welcomed!! |
Certifications
LJ Group Projects
Services and FAQ
The Steel Structure Workshop product comes with comprehensive
technical support and services to ensure successful installation
and operation of the structure. Our team of experts is available to
provide guidance and assistance throughout the process, including:
- Design and engineering services to ensure the structure meets your
specific requirements and local building codes;
- Assistance with selecting the appropriate materials and components
for your project;
- On-site installation services to ensure proper assembly and safety
compliance;
- 24/7 technical support for any questions or issues that may arise;
We are committed to providing exceptional service and support to
our customers, and are dedicated to ensuring the success of every
Steel Structure Workshop project.
Q:Are you manufacturer or trading company?
A:We are manufacture factory, located in Qingdao city, near to
Qingdao port. And we have total 3 workshops from steel structure to
wall and roof sheet.
Q: How about your quality control?
A: We have got certificate ISO & CE. Products processing through
cutting, bending, welding, shot blasting, ultrasonic testing,
packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client
requirement.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to order quantity,
partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors
guiding installation is available. We can do turnkey job for some
kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution
according to your requirements before placing order. Proposal
drawing, Shop drawing, 3D drawing, Materials photos, Finished
projects photos are available, which will help you understand the
solution we provided deeply.
