Prefabricated Farm Steel Structure Open Colsed Broiler Poultry Chicken Houses Fully Automated Chicken Farming Equipment Cow Barn Shed

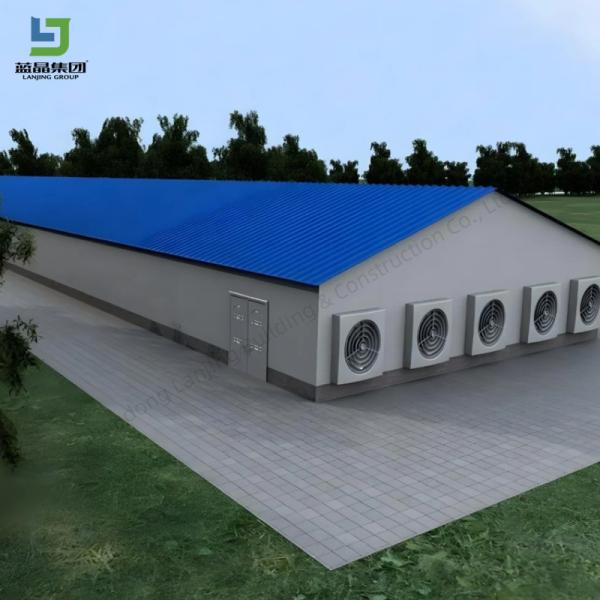

A steel structure broiler chicken house or poultry farm is built with a light steel frame and is widely used for broiler and layer chickens, as well as for sheep, cows, and other livestock. The roof can be made from corrugated steel sheets or sandwich panels, offering excellent insulation. The walls are constructed with steel mesh and curtains or sandwich panels. Both the walls and the roof provide outstanding insulation, making the structure highly resistant to wind, impact, and climate changes.
Lanjing Group is a steel structure manufacturer and have been working with a poultry equipment company for many years.
If you haven't made a choice on the equipment yet, we can provide relevant solutions for your reference.
| Main Structure | Column/Beam | Q235/Q355 Welded H Section Steel |
| Welding | Automatic Submerged Arc Welding |
| Rust removing | Shot blasting |
| Surface processing | twice primer and twice finish Alkyd paint or hot dip galvanized |
| High strength bolt | Grade 10.9 |
| Substructure | Angle brace | steel Q235, process and painting |
| Cross bracing | round bar, steel Q235 process and pre-galvanized |
| Tie bar | round pipe, steel Q235 process and painting or pre-galvanized |
| Batter brace | round bar, steel Q235 process and pre-galvanized |
| Ordinary bolt | Galvanized bolt |
| Roof | Purlin | C channel or Z channel, steel Q235, galvanized |
| Roof panel | (50mm~200mm) Sandwich panel , corrugated galvanized iron sheet |
| Transparent skylight | FRP |
| Accessories | Sealant, self-tapping screw |
| Edge cover | Made of color steel sheet |
| Gutter | Made of steel sheet with thickness 0.8mm, or PVC |
| Rainspout | PVC pipe |
| Wall | Purlin | C channel or Z channel, steel Q235, galvanized |
| Wall panel | (50~200mm) Sandwich panel , corrugated galvanized steel sheet |
| Accessories | Sealant, self-tapping screw |
| Edge cover | Made of color steel sheet |
| Ventilator | Unpowered axial-flow ventilator or monitor roof |
| Door & Window | Electric/manual rolling door/sliding door, PVC/ Aluminum alloy window |
| Wind Resistance Grade | 12 Grades |
| Earthquake-resistance | 8 Grades |
| Structure Usage | Up to 50 years |
| customized service and personalized design are welcomed!! |
- Type of chicken farming house poultry shed
1. Closed Type ( with roof and wall panel cladding)
2. Open Type (no wall or wire mesh&curtain for wall)
3. It can be with different structure type,one is portal frame structure and another is roof truss structure.
 |  |
| OPEN TYPE low cost, easy built, more economical design, Roof panel, the wall is covered with steel wire mesh and curtain | CLOSED TYPE Control the temperature Control the humidity and lighting time Creating the right environment helps chickens grow faster and more efficiently |
1. Automatic pan feeding system
2. Nipple drinking system
3. Ventilation system
4. Cooling pad system
5. Heating system
6. Environment control system
Our company can provide one-stop solution including the construction drawings and calculation with you .We have a professional technical team that offers the best steel structure building solutions depands on the specific requirements of our clients.
1 ) Experienced and skilled team of designers who has the capacity to deliver outstanding designs for your project .
2 )Design service is free of charge to all clients to ensure customer .
3 ) We look forward to delivering exceptional designs and advice for your project .

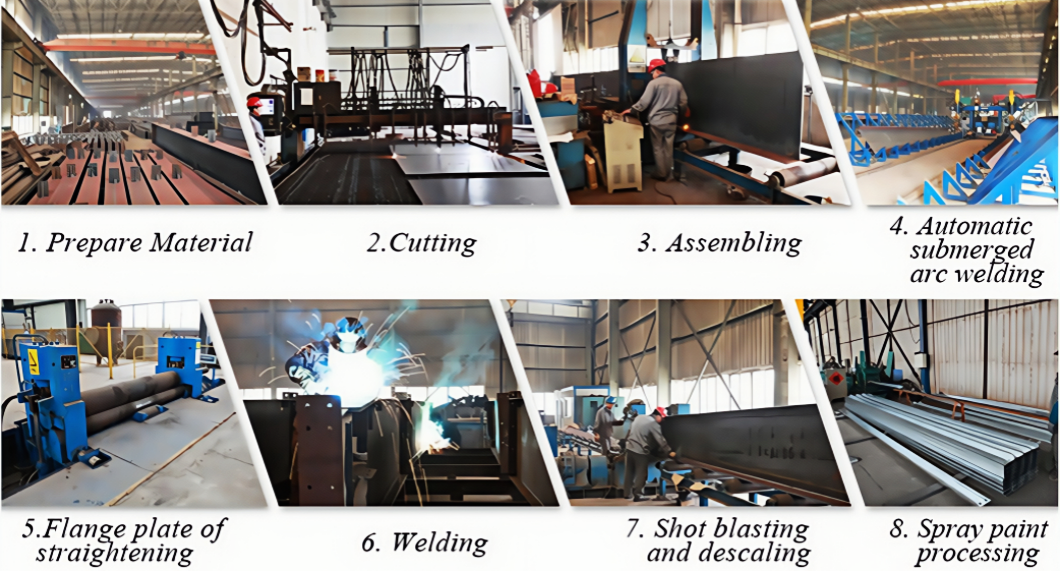

In the steel structure production process, we adhere to strict quality control at every stage, from the procurement of raw materials to the final product's delivery. Our technical team uses advanced production equipment and processes, aligning with international quality standards to ensure that every steel structure product possesses exceptional strength, durability, and stability. Through continuous quality monitoring and meticulous inspection procedures, we ensure that each project meets our clients' high standards, guaranteeing the safety and quality of the construction.

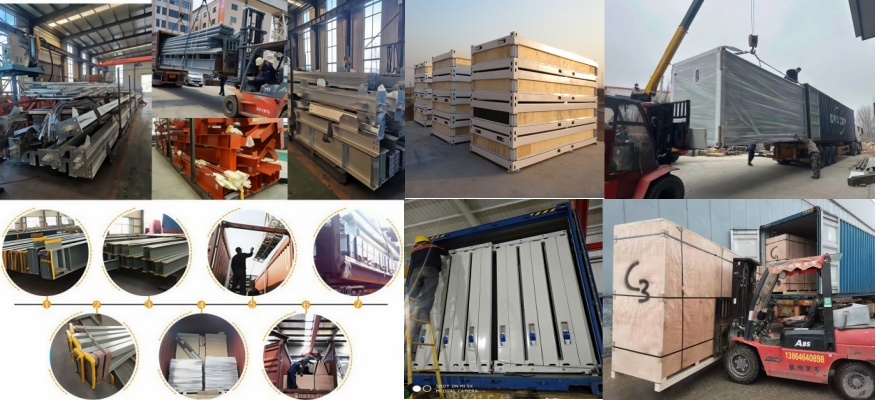

We considered the fragility, weight, and potential risks during transportation of different components when loading the products into the shipping containers, and took appropriate measures to ensure the safe and efficient unloading process for the customers.
Shandong Lanjing Building & Construction Co., Ltd. is a professional manufacturer for Steel structure building,Container House and Prefab house in China for more than 10 years.
Exported to 100+ countries and completed 500+ projects.
IS09001, BV, SGS, TUV audited
Lanjing Building & Construction offers comprehensive ONE-STOP services, delivering customized solutions that include Consultation, R&D, Design, Manufacturing, Installation, Overseas project supervision and after-sales support.
We specialize in creation of high-quality Steel structure Warehouse, Workshop, High-rise steel fame building and Container house for Labor camp, worker container etc.
We provide steel building to clients in the sectors of Oil & Gas, Mining, Energy dormitory, Site office, Shower container. Toilet Infrastructure and Construction projects Steel Structure built his reputation Reliability and Service.
Our factory is located in Weifang, China, with a factory area of more than 12 hectares ((120.000SOM )and a registered capital of CNY50 Million, after more than 10 years of development, we have strong technical strength and comprehensive product lines.Steel Structure has completed 500+ projects in more than 100 countries, We has built long-term partnerships with different international companies as well as organizations & government.
| Main Products Steel structure Building Prefabricated container house Metal Sandwich Panels |
|
Q: Is your company a factory or trading company?
A: We are manufacturer with foreign trade department, so you can get competitive price as well as professional service. And you are always welcomed to visit our factory at any time.
Q: What are your main products?
A: We provide steel structure warehouse, workshop, plants,chicken house, prefabricated house, container type house, garage, aircraft hangar, sandwich panels and other construction materials. According to the requirements of different projects and clients, we will supply different designs and steel products.Customized design is available.
Q: What's the quality assurance you provide and how do you make quality control?
A: Quality-first is our core value. LJ steel structure quality assurance team and quality control team have developed a rigorous quality inspection system based on ISO9001. Testing Laboratory guarantees qualified raw materials and high- standard product.
Q: Do you provide installation instructions and on-site installation services?
A:Every project will provide the installation instructions, and if you need, we also would like to send our engineer to the local construction site for helping the installation work.
Q: How to control the quality of your product?
A: a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production:precise manufacturing technique, experienced workers, strict quality inspection.
Q: How can l get the quotation of the project?
A: lf you have the drawing, we can offer you our quotation accordingly. lf youhave no design, our engineer will design for you to confirm. And then offer you a quotation.
Q:What's the payment term?
A:30% deposit and 70% balance before shipment.
Q:What's the delivery time?
A:The delivery time depends on the size and quantity of building.Generally within 30 days after receivingthe payment.And partial shipment is allowed for big order.
